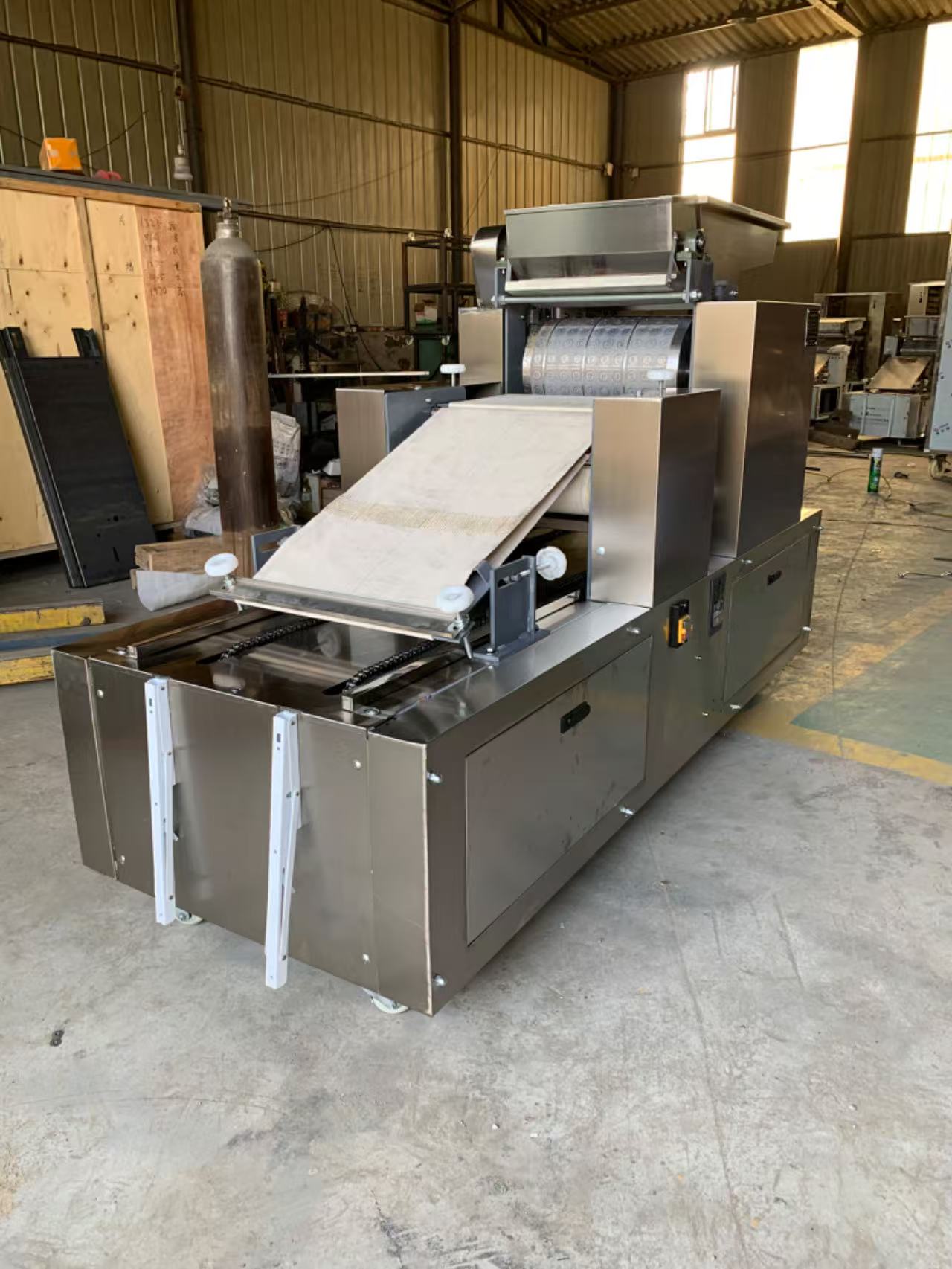

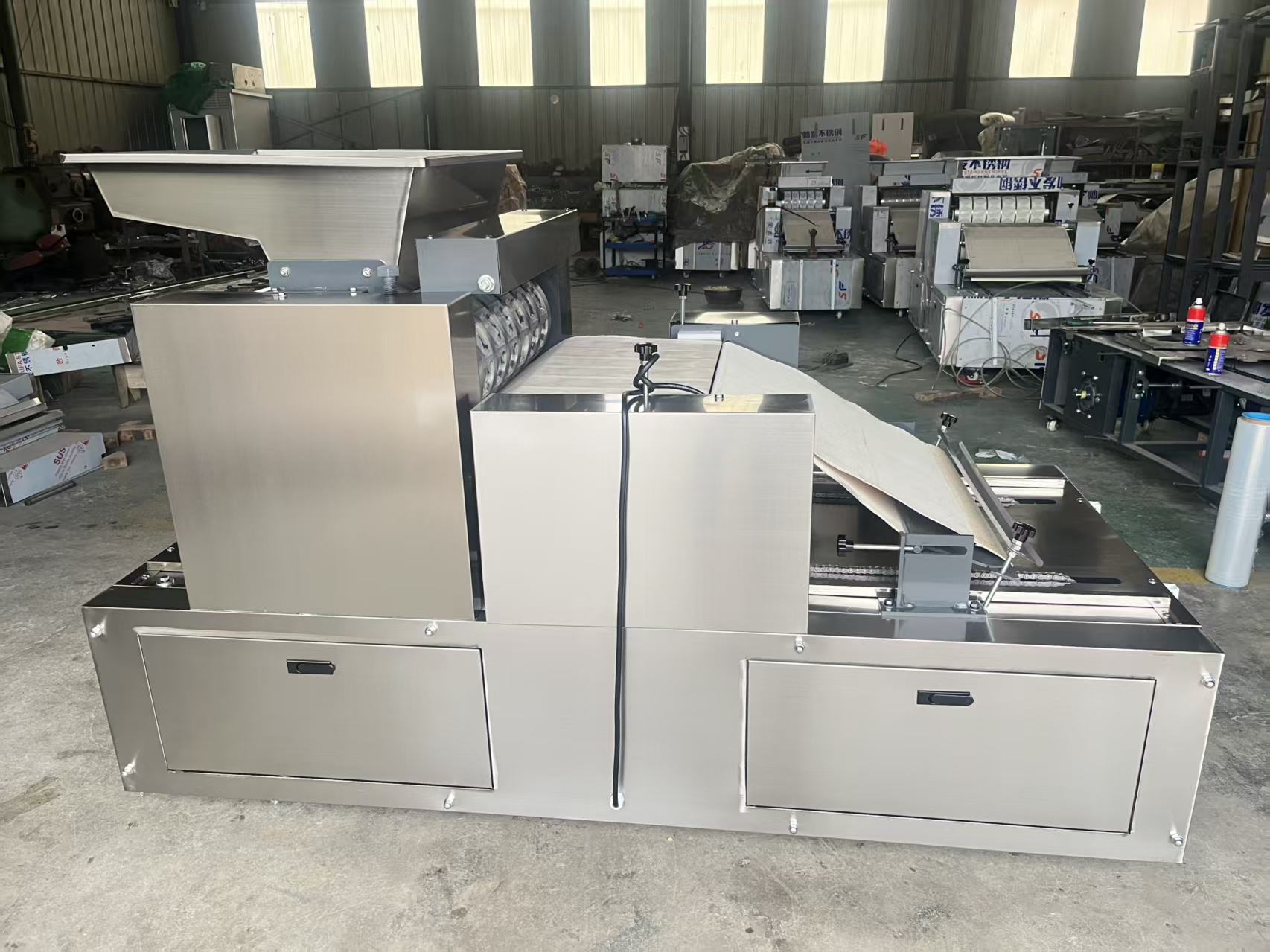

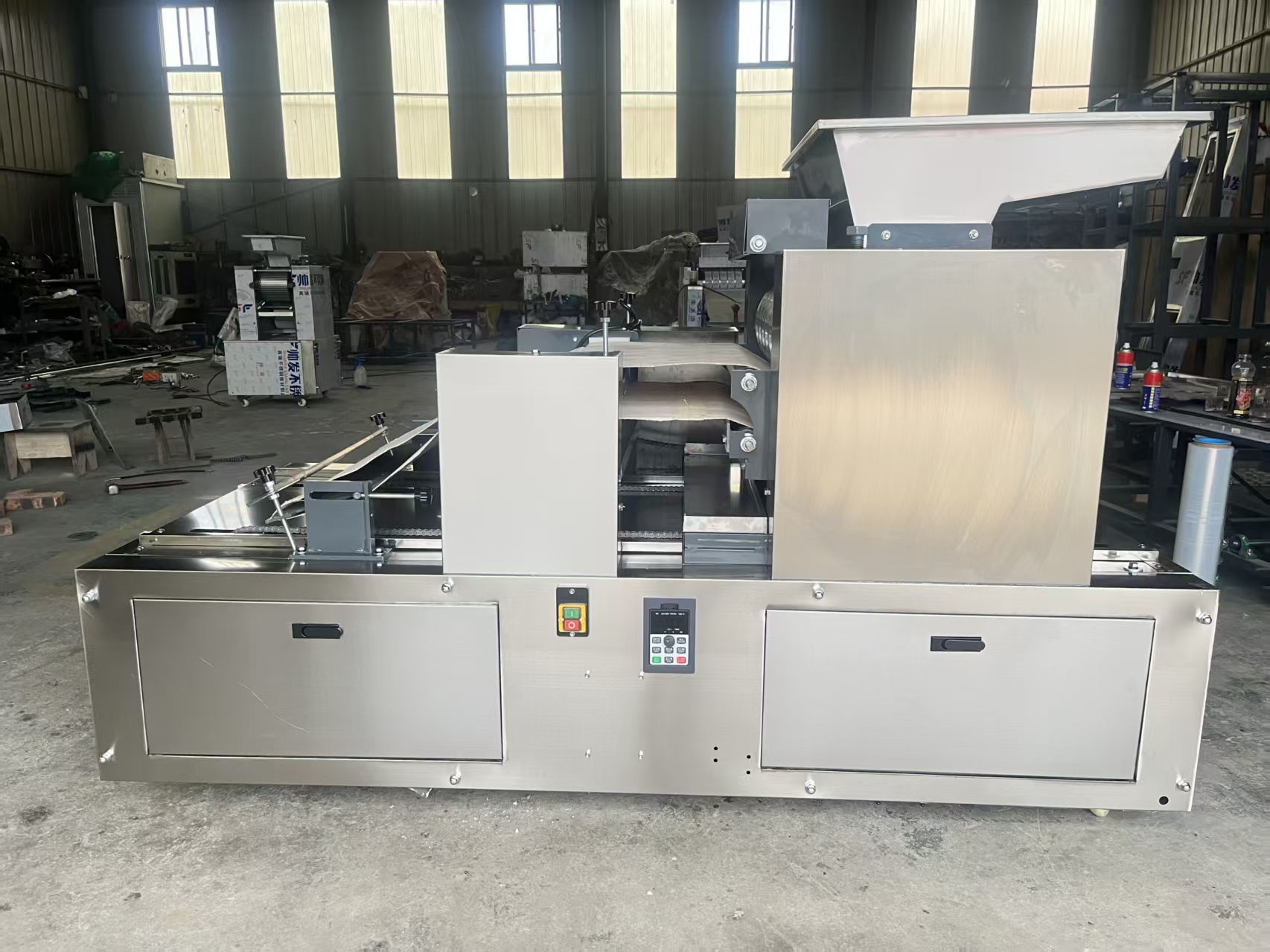

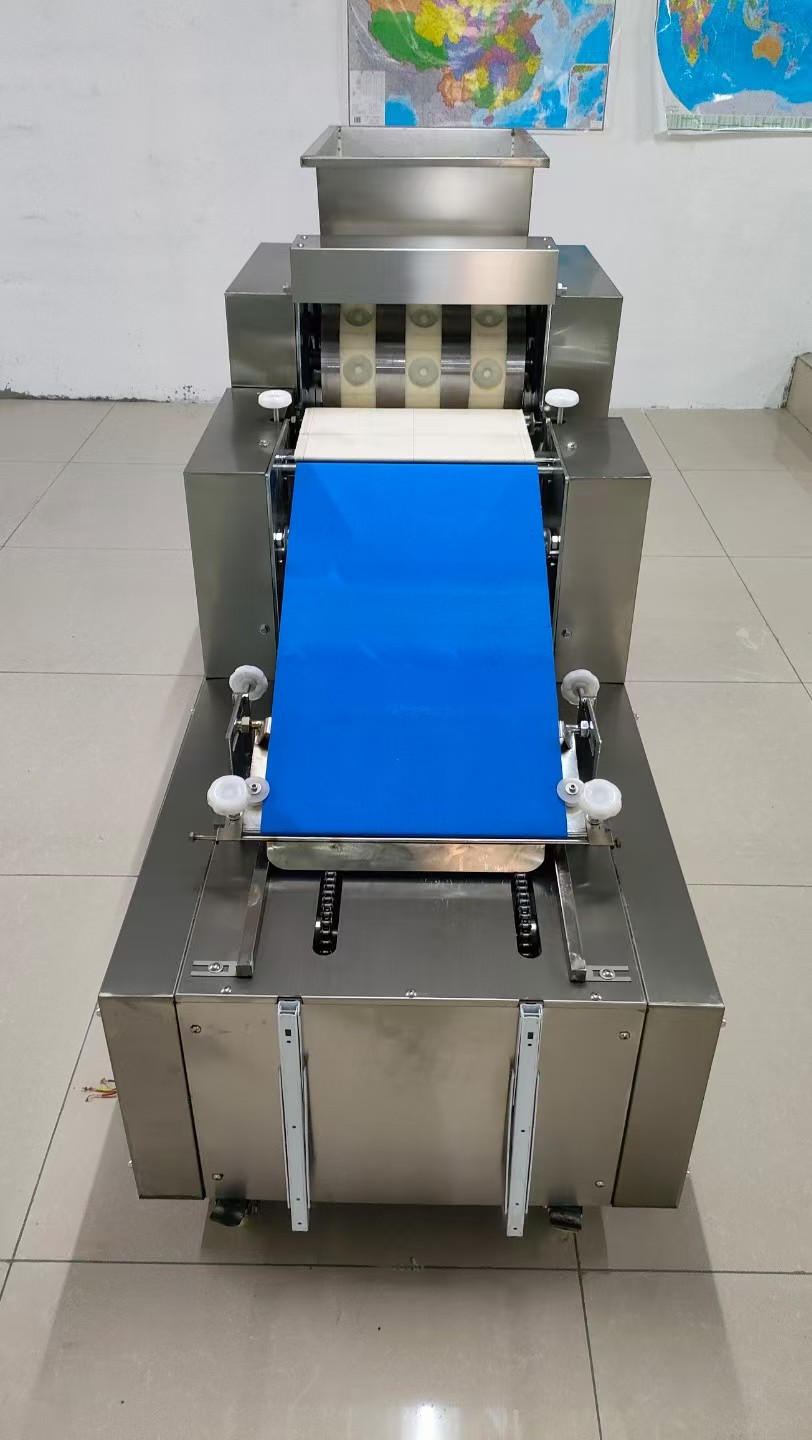

Model 40 Automatic Biscuit Forming Machine
For factories that need a more continuous workflow. The machine automatically arranges formed biscuits on trays while an operator continuously supplies the confirmed tray size.
- Maximum reference output
- Approx. 200 kg/h
- Power
- 2.2 kW
- Tray / connection
- Automatic arranging; an operator continuously supplies trays
Where does this model fit?
Growing biscuit factories, 400 mm tray workflows and an upgrade to automatic arranging
Technical and shipping data
The following values come from current formal product data. Unlisted configurations must be confirmed for the specific product.
| Item | Confirmed value | Notes |
|---|---|---|
| Maximum reference output | Approx. 200 kg/h | Actual output depends on biscuit size, design and recipe |
| Power | 2.2 kW | — |
| Standard voltage | Single-phase 220V or three-phase 380V | 50Hz and 60Hz are supported; three-phase 415V can be used directly |
| Machine dimensions | 2.0 × 0.8 × 1.25 m | — |
| Machine weight | Approx. 380 kg | — |
| Wooden case dimensions | 2060 × 850 × 1350 mm | — |
| Shipping weight / volume | Approx. 420 kg / 2.4 CBM | — |
| Effective forming roller width | 400 mm | — |
| Conveyor width | 400 mm | — |
| Standard tray | 400 × 600 mm | — |
| Tray handling | Automatically arranges biscuits on trays | An operator must continuously place trays behind the machine |
See the real working condition of this model
Model 40 automatic tray arranging
The machine arranges formed biscuits while the operator continuously supplies the confirmed tray size.
The video demonstrates the machine workflow and does not replace project confirmation for your recipe, design and output.

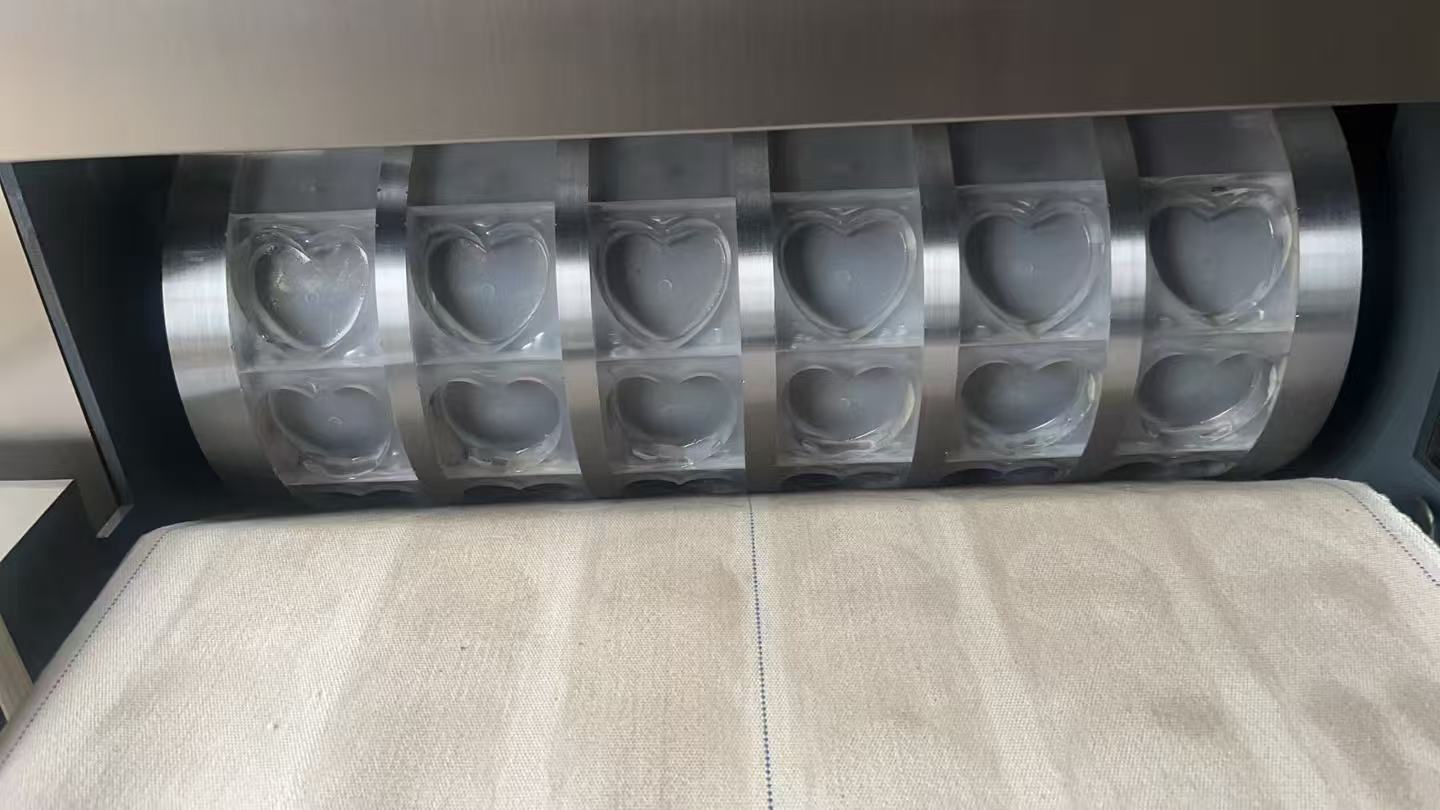

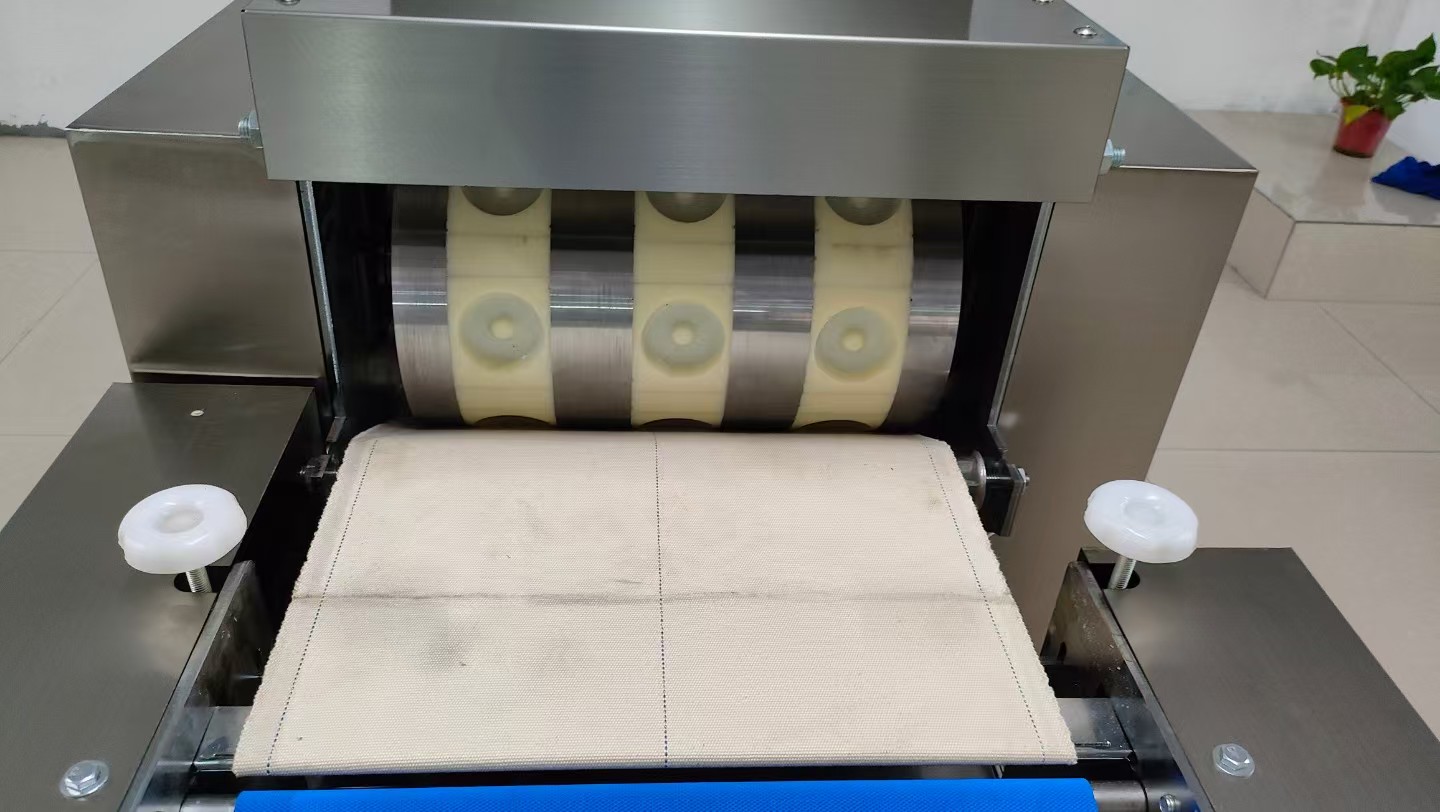

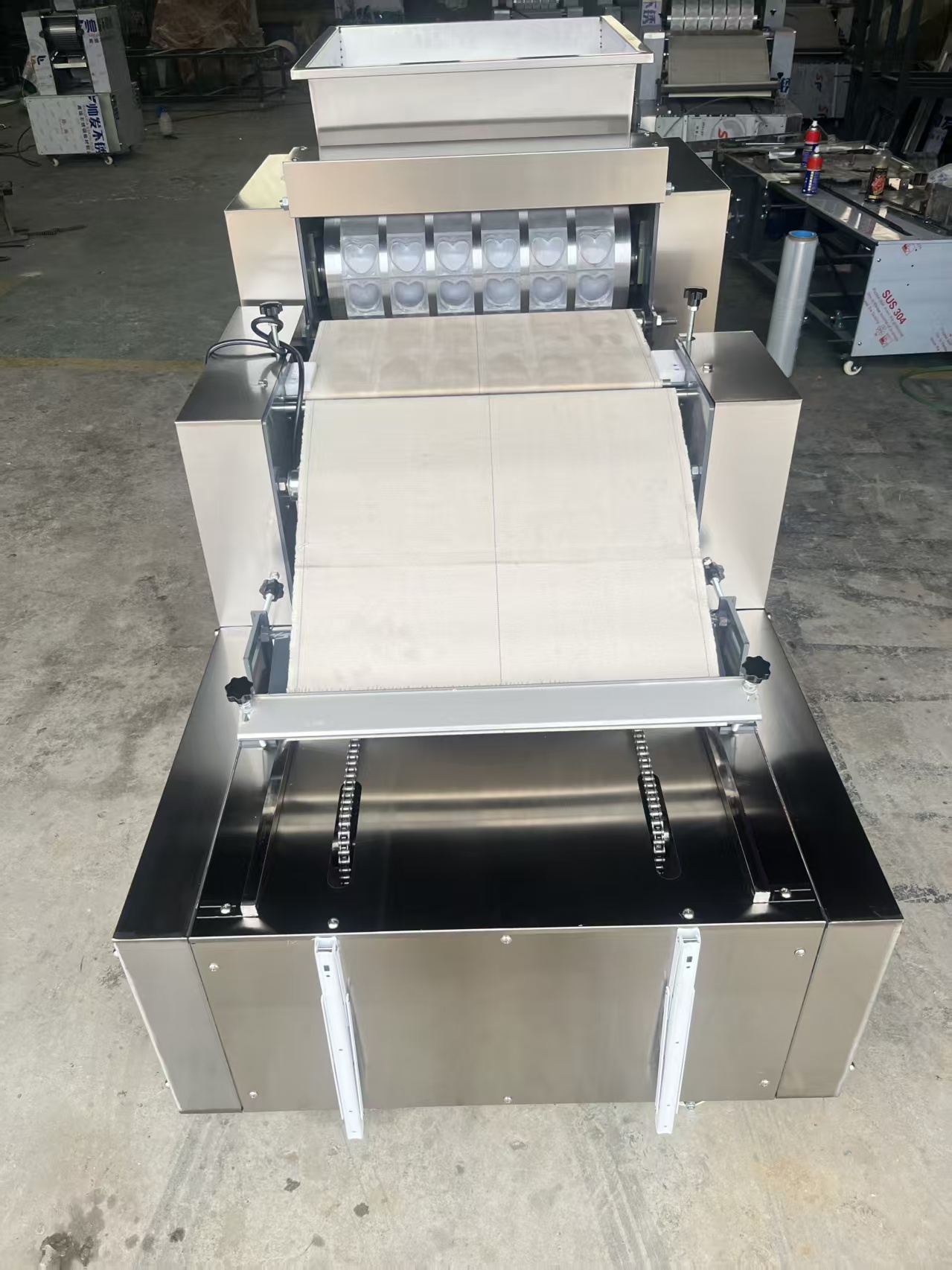

One custom forming roller included
Made to one confirmed product design, dimensions, thickness and required logo. Multiple designs using the same dough may be placed on one roller, but they are produced at the same time.
Provide a clear product photo or drawing
Confirm exact length, width or diameter and thickness
Confirm any required logo and its position
Manufacture and confirm the forming result by test video
Working process
From suitable material to formed biscuit pieces. Baking and other downstream processes are outside this machine.
Load suitable loose material into the hopper
The feeding system supplies material steadily
The custom roller forms biscuit pieces continuously
The machine arranges biscuits on trays supplied by the operator
Key advantages of Model 40 Automatic Biscuit Forming Machine
Approx. 200 kg/h maximum reference output
400 mm forming and conveyor width
Automatic arranging on the confirmed tray size
One custom forming roller and variable-frequency speed control
Frequently asked questions
What biscuits can the machine form?＋
Short-dough material that is dry, loose, non-sticky and holds under light pressure at feeding. It forms plain, single-layer, unfilled bases; sandwich-biscuit pieces can be formed separately.
What are the dimension and thickness limits?＋
Diameter, maximum length and maximum width must be strictly above 30 mm and below 130 mm. Thickness is 3–15 mm.
Is a mold included?＋
One forming roller customized to one confirmed design, dimensions, thickness and required logo is included.
Does automatic tray arranging eliminate the operator?＋
No. The machine arranges biscuits automatically, but an operator must continuously supply trays of the confirmed size behind it.
Does the machine bake?＋
No. It only forms biscuit pieces. We do not supply an oven or tunnel oven.
Is output fixed?＋
No. Listed output is the maximum reference value and varies with biscuit size, design and recipe.
Which voltage is available?＋
Standard options are single-phase 220V or three-phase 380V. Both 50Hz and 60Hz are supported; three-phase 415V can be used directly.
