Product design
Shape, surface pattern and any required logo
BISCUIT FORMING SOLUTIONSTurn one biscuit design into a
Turn one biscuit design into a
repeatable product.
Commercial biscuit forming machines for factories, food processors, distributors and overseas agents. We match the model to your product, output, tray and downstream conditions.
ChinaManufacturer4Standard modelsTestVideo before shipment12 monthsQuality warranty
APPLICATIONSHORT-DOUGH BISCUIT FORMINGDesign · dimensions · thickness · required logo
01
SELECT BY OUTPUTFour forming paths
01Compact · Manual tray loading
Model 20
Approx. 100 kg/hManual removal and tray loading; automatic traying cannot be added
↗02Medium output · Automatic tray arrangingModel 40
Approx. 200 kg/hAutomatic arranging; an operator continuously supplies trays
↗03Higher output · 600 mm automatic arrangingModel 60
Approx. 300 kg/hAutomatic arranging; an operator continuously supplies trays
↗04High reference output · Connects to the buyer’s tunnel oven lineModel 80
Approx. 500 kg/hNo tray arranging; connects directly to the buyer’s tunnel-oven conveyor
↗SOLUTION FIRST
Start with your biscuit, not with a machine.
Send a clear biscuit photo, exact dimensions, thickness and target output. We first check product and material suitability, then recommend the equipment.
Check forming suitability →Exact dimensions
Diameter, length and width strictly above 30 mm and below 130 mm
Thickness
Forming range from 3 to 15 mm
Output and tray
Manual handling, automatic arranging or downstream conveyor connection
TWO PURCHASING PATHS
Go directly to what matters for your business.
Factories focus on forming suitability and line connection; distributors focus on model range, market needs and delivery boundaries.
Biscuit factories and food processors
Confirm whether your product can be formed consistently, then select by output, tray and downstream equipment.
- Clear product photo, dimensions and thickness
- Target hourly output and production plan
- Tray size or tunnel-oven conveyor conditions
Food machinery distributors and overseas agents
Tell us your market, models of interest and expected quantity so we can provide consistent technical and export information.
- Target country or sales region
- Models of interest and expected quantity
- Questions about specifications, packing or support
EQUIPMENT RANGE
From entry-level output to continuous forming
Compare reference output, power, forming width and tray or downstream handling before opening the full specification page.
QUICK SELECTORQuick model comparison
| Model | Maximum reference output | Power | Forming width | Traying / connection | View details |
|---|---|---|---|---|---|
| 20 | Approx. 100 kg/h | 1.5 kW | 200 mm | Manual removal and tray loading; automatic traying cannot be added | View details → |
| 40 | Approx. 200 kg/h | 2.2 kW | 400 mm | Automatic arranging; an operator continuously supplies trays | View details → |
| 60 | Approx. 300 kg/h | 3 kW | 600 mm | Automatic arranging; an operator continuously supplies trays | View details → |
| 80 | Approx. 500 kg/h | 4 kW | Confirm for the product and line interface | No tray arranging; connects directly to the buyer’s tunnel-oven conveyor | View details → |
20Compact · Manual tray loading

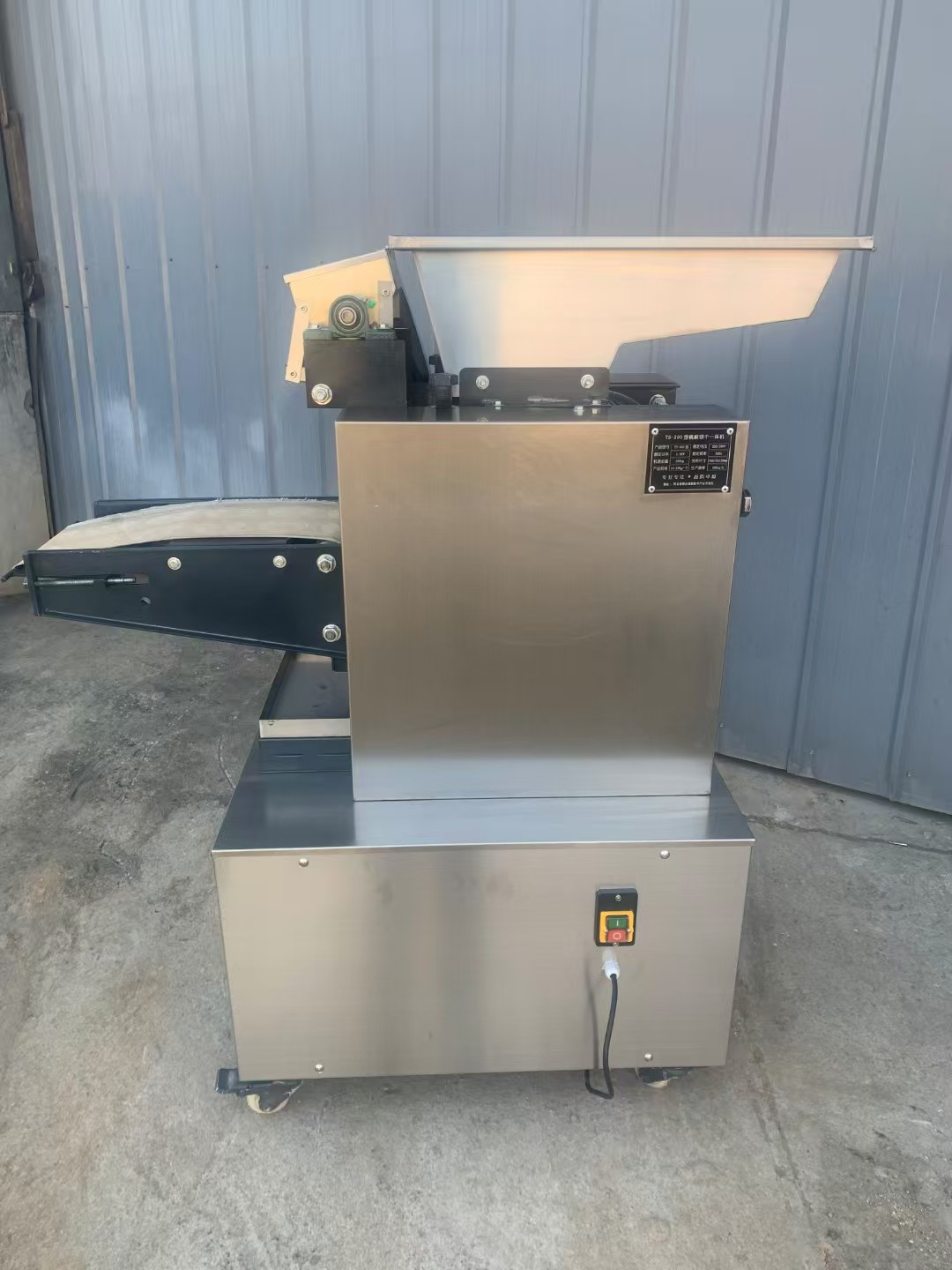

Model 20 Biscuit Forming Machine
Approx. 100 kg/hMaximum reference output1.5 kWPower
A compact commercial machine for small factories and start-up projects. It forms biscuit pieces, which are then removed and placed on trays manually.
40Medium output · Automatic tray arranging

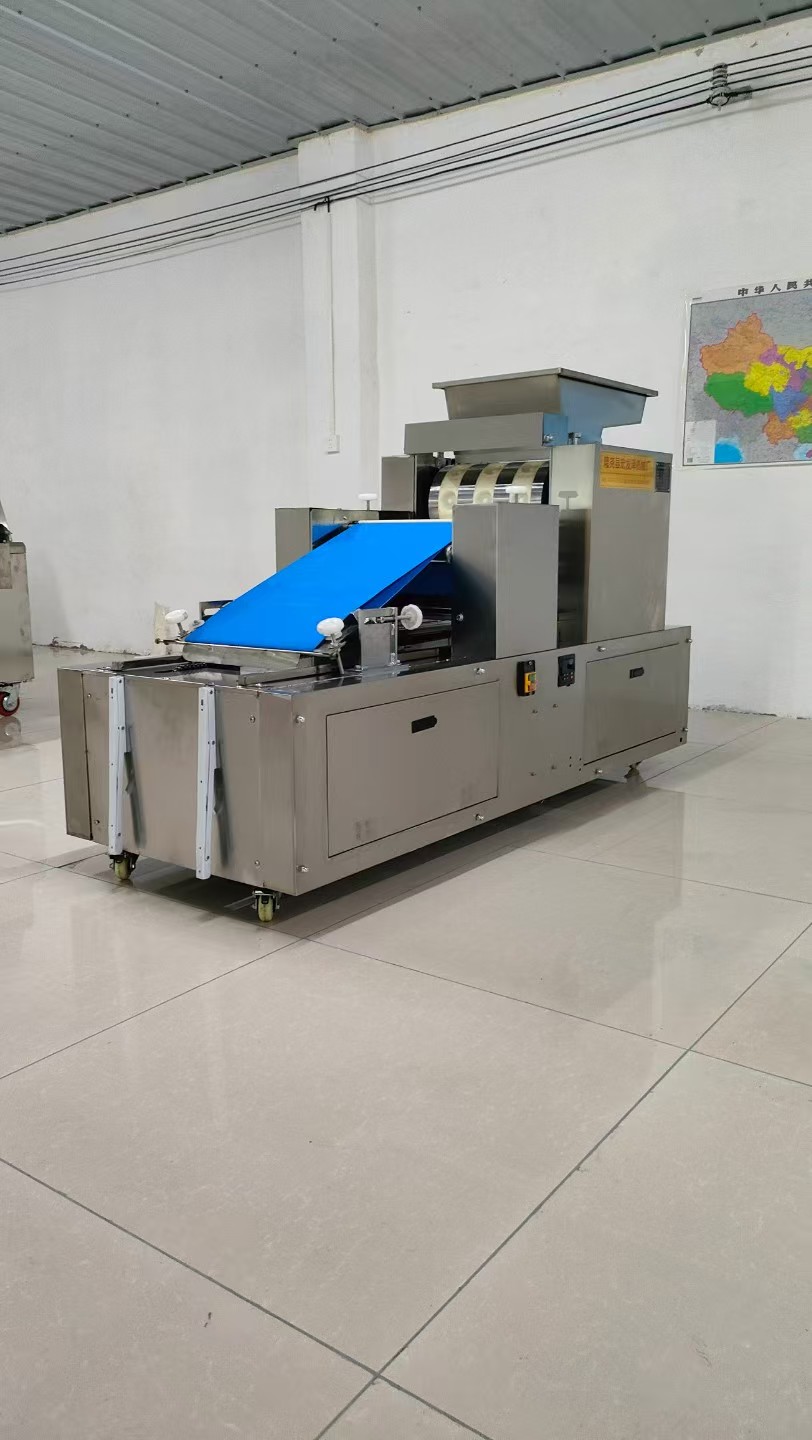

Model 40 Automatic Biscuit Forming Machine
Approx. 200 kg/hMaximum reference output2.2 kWPower
For factories that need a more continuous workflow. The machine automatically arranges formed biscuits on trays while an operator continuously supplies the confirmed tray size.
60Higher output · 600 mm automatic arranging
Model 60 Automatic Biscuit Forming Machine
Approx. 300 kg/hMaximum reference output3 kWPower
A 600 mm wide forming machine for higher output requirements, automatically arranging biscuits on the confirmed tray size.
80High reference output · Connects to the buyer’s tunnel oven line
Model 80 Biscuit Forming Machine
Approx. 500 kg/hMaximum reference output4 kWPower
For higher-output continuous forming. The formed pieces transfer from this machine to the buyer’s existing tunnel-oven conveyor. This machine does not bake or arrange trays.
REAL MACHINE EVIDENCE
See how the machines work.
Reviewed working videos show the actual forming and tray-handling methods of Models 20, 40 and 80. Model 60 has no reviewed video and is not represented by another model.
01
MODEL 20
Model 20 compact forming workflow
The formed biscuit pieces are removed and placed on trays manually.
View model specifications →02
MODEL 40
Model 40 automatic tray arranging
The machine arranges formed biscuits while the operator continuously supplies the confirmed tray size.
View model specifications →03
MODEL 80
Model 80 continuous forming
Formed pieces transfer to the buyer's downstream conveyor; the machine does not include a tunnel oven or baking.
View model specifications →CUSTOM FORMING ROLLER
One roller, customized from your product design.
Every machine includes one forming roller made to the confirmed design, dimensions, thickness and required logo. A mold cannot be made by finished biscuit weight alone because recipes produce different weights.
Biscuits & Molds →Design and logo
Confirm the product pattern and logo position
Dimensions and thickness
Build to confirmed dimensions and 3–15 mm thickness
Multiple designs
Designs using the same dough may run together on one roller
MANUFACTURER & EXPORT SERVICE
Verified manufacturing and delivery information
Manufacturer
Xingtai Faze Technology Co., Ltd. supplies commercial biscuit forming equipment from Longyao County, Xingtai, Hebei, China.
Testing
Machines are assembled, adjusted and tested before shipment; a testing video is provided.
Export packing
Each machine is packed in one fumigation-free export wooden case.
Support
12-month quality warranty from receipt, plus long-term remote technical support.
COMMON QUESTIONS
Clarify the machine’s scope before requesting a quote.
The equipment forms biscuit pieces. It does not bake, fill, coat, sprinkle or assemble sandwich biscuits.
FAQ →What biscuits can the machine form?＋
Short-dough material that is dry, loose, non-sticky and holds under light pressure at feeding. It forms plain, single-layer, unfilled bases; sandwich-biscuit pieces can be formed separately.
What are the dimension and thickness limits?＋
Diameter, maximum length and maximum width must be strictly above 30 mm and below 130 mm. Thickness is 3–15 mm.
Is a mold included?＋
One forming roller customized to one confirmed design, dimensions, thickness and required logo is included.
Does the machine bake?＋
No. It only forms biscuit pieces. We do not supply an oven or tunnel oven.
